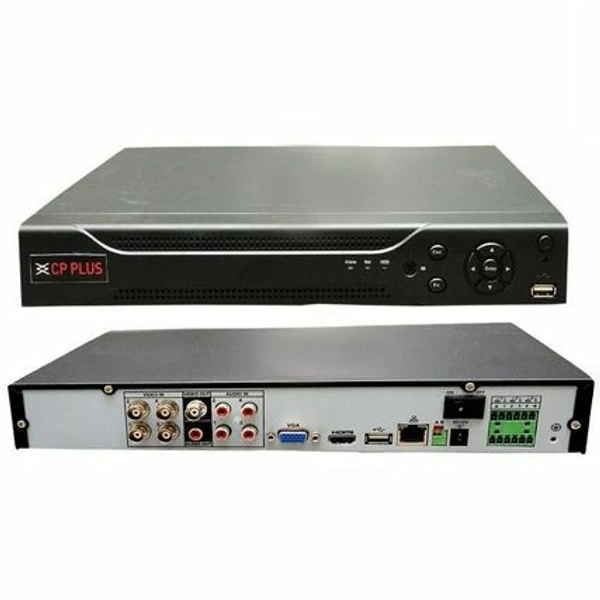

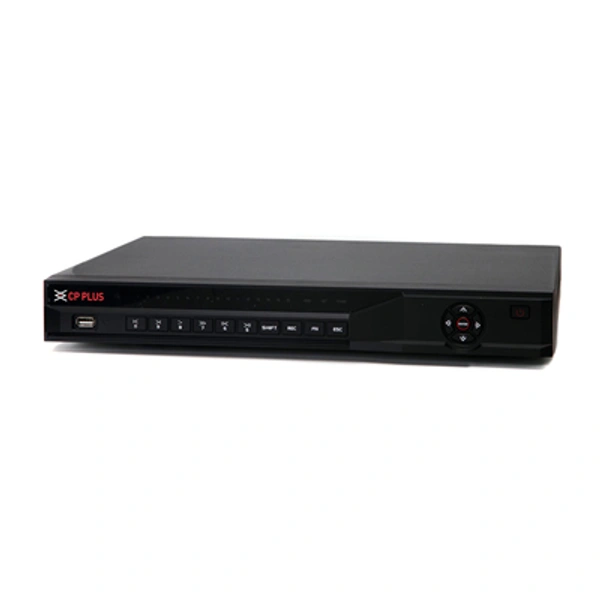

CP-VRA-2K3216-H 32Ch. 1080N H.265 Indigo DVR, Audio Channel 16 Ch

CCP-VRA-2K3216-H
32 Ch. 1080N H.265 Indigo DVR

Key Features
H.265/ H.264 dual-stream video compression
All channel 1080N Non-Realtime Recording
Support AHD, TVI,CVI, CVBS, IP Video input
HDMI / VGA simultaneous video output
Support 2 SATA HDD up to 16TB, 2 USB2.0
Mobile Software: cMOB-20
CMS Software: CVMS-2000

Specification

Processor High performance embedded microprocessor
Operating System Embedded LINUX
User Interface GUI
Video Output 1 HDMI, 1 VGA
Video Recording 32Ch. 1080N@15fps
Video Display Split 1/4/8/9/16/25/32
Video Channel 32 Ch.
Audio Output 1 channel
Audio Channel 16 Ch.
Alarm Input 8 Channel
Alarm Output 1 Channel
Smart Phone iPhone, iPad, Android
Hard Disk 2 SATA port, up to 16TB
HDD Management HDD Storage, Network Storage
Recording Mode Manual>Alarm>Motion detection>Timing
Search Mode Search by Time/Calendar/Event/Channel
Backup Mode Network, USB, SATA
Playback 16/8 Ch.
Ethernet 10/100/1000Mbps Ethernet port, 1 RJ45 port
Interface Ports 2 USB 2.0, 1 RS485, 1 RS232
Protocols HTTP, TCP/IP, UDP, IPV4, UPNP, RTSP, SMTP, NTP, DHCP, DNS, FTP, P2P, ONVIF, CGI
Power Supply 12V/4A
Power Consumption <10W(Without HDD)
Working Temp 0 °C - + 55 °C, 10% -90% RH
Dimension 440mm(L) x 290mm(W) x 50mm(H)
Weight 3KG
