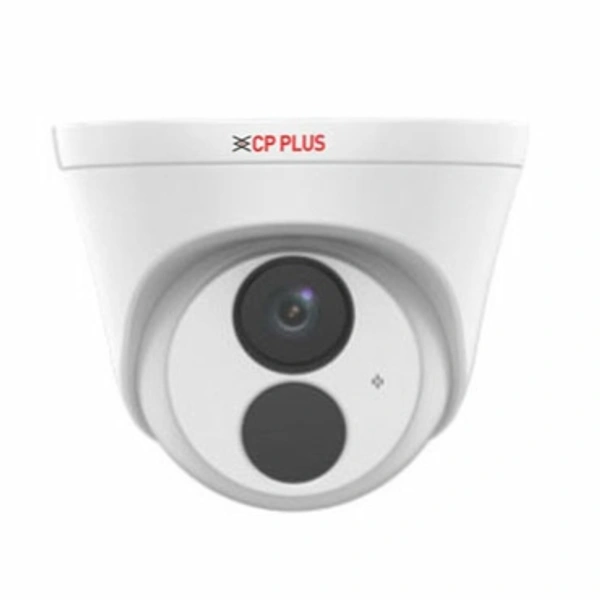

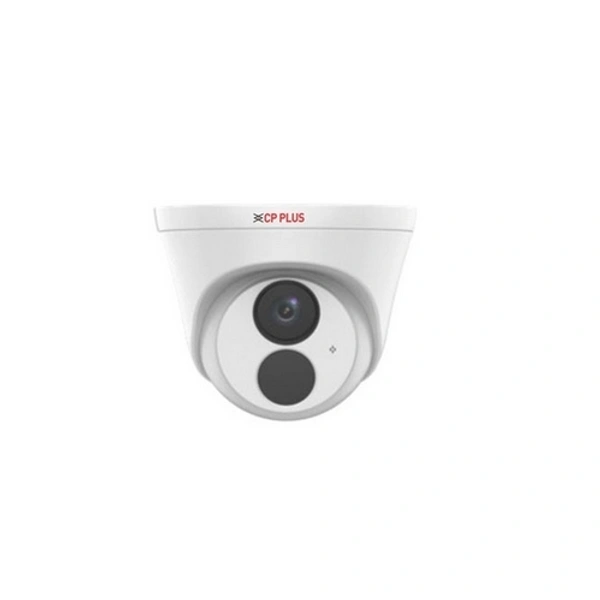

CP-VNC-D21R3 2 MP Full HD Array Dome Camera - 30Mtr.

CP-VNC-D21R3

2 MP Full HD Array Dome Camera - 30Mtr.

• 1/2.7" 2MP PS CMOS Image Sensor (6.858 centimeters)
• Max 25/30fps@1080P
• Ultra H.265, H.265, H.264, MJPEG Triple-stream Encoding
• DWDR, Day/Night(ICR), 2D/3D-DNR, ROI, AWB, AGC, BLC
• 2.8mm lens (3.6mm optional)
• Array Range of 30 Mtrs, IP67, PoE
• Supports Instastream technology, save diskspace and bandwidth upto 70%
• Mobile Software: Android, iOS
• CMS Software: IVMS

Specification

Image Sensor 1/2.7" 2MP PS CMOS Image Sensor (6.858 centimeters)
Minimum Illumination Colour: 0.02 Lux (F2.0, AGC ON) 0 Lux with IR
BodyType Dome
Shutter Speed Auto/Manual, 1~1/100000 s
White Balance Auto/Manual
Lens 2.8mm (3.6mm Optional)
AGC Control Auto/Manual
Video Compression H.265, H.264, MJPEG
S/N Ratio >52dB
Back Light Comp. BLc/HLC/DWDR
Frame Rate Main Stream: 1080P (1920x1080), Max 30fps; Sub Stream: 720P (1280x720), Max 30fps; Third Stream: CIF (352x288), Max 30fps
Video Streaming Triple
OSD Up to 4 OSDs
Resolution 1920×1080
Motion Detection Up to 4 areas
Privacy Mask Up to 8 areas
ICR IR-cut filter with auto switch (ICR)
ROI Up to 2 areas
Protocol IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS, ONVIF (Profile S, Profile T),API
Ethernet 10M/100M Base-TX Ethernet
IR Range Array Range of 30 Mtr.
Operating Temperature -30°C ~ 60°C (-22°F ~ 140°F)
Humidity <95% RH(non-condensing)
Power Source 12 V DC, or PoE (IEEE802.3 af)
Power Consumption Max 5.0W
Dimension Φ118 x 96 mm (Ø4.6” x 3.8”)
Weight 0.3kg
