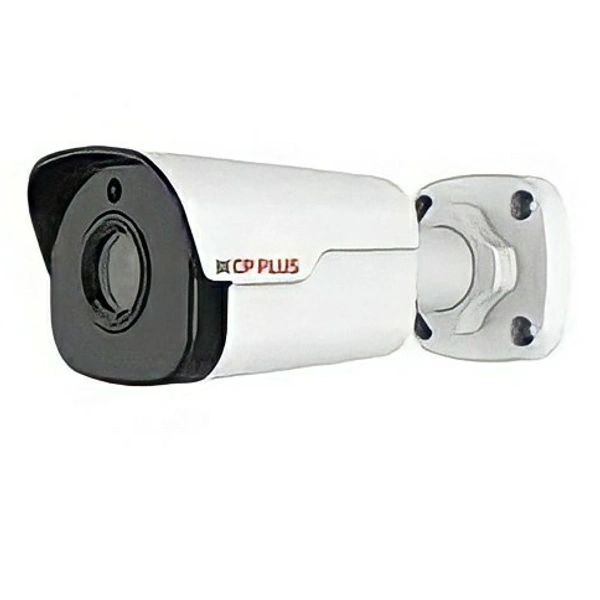

CP-VNC-T51R3C-D 5 MP Full HD WDR Array Bullet Camera - 30Mtr.

CP-VNC-T51R3C-D

5 MP Full HD WDR Array Bullet Camera - 30Mtr.

• 1/2.7” 5MP PS CMOS Image Sensor (6.858 centimeters)
• 5MP(2592 x 1944): Max. 25 fps
• Ultra 265,H.265, H.264, MJPEG Triple-stream Encoding
• WDR(120dB), Day/Night(ICR), 2D/3D-DNR,Corridor mode, ROI,Digital defog, AWB, AGC, BLC, HLC
• 3.6mm lens (6mm optional)
• Array Range of 30 Mtrs, Smart IR, IP67, PoE
• Mobile Software: Android, iOS
• CMS Software: IVMS

Specification

Image Sensor 1/2.7” 5MP Progressive scan CMOS (6.858 centimeters)
Minimum Illumination Colour: 0.005Lux (F1.6, AGC ON) 0 Lux with IR
BodyType Bullet
Shutter Speed Auto/Manual, 1~1/100000 s
White Balance Auto/Manual
Lens 3.6mm (6mm Optional)
Gain Control (AGC) Auto/Manual
Video Compression Ultra 265,H.265, H.264, MJPEG
Angle of View 3.6mm- 79.7° (H), 51.8° (V), 98.1° (O) ; 6mm- 50.5° (H), 35.9° (V), 62.1° (O)
Back Light Comp. BLC / HLC / WDR(120dB)
Frame Rate Main Stream: 5MP: Max. 20 fps, 5MP: Max. 25fps(WDR OFF), 4MP: Max. 30fps, 3MP: Max. 30fps, 2MP: Max. 30fps , Sub Stream: 2MP: Max. 30fps, Third Stream: D1: Max.30fps
Video Streaming Triple
Resolution 2592 x 1944
Motion Detection Up to 4 areas
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
ICR IR-cut filter with auto switch (ICR)
ROI Up to 8 areas
Audio Built-in Mic
Protocol IPv4, , IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, ONVIF (Profile S, Profile T), API
Ethernet 10M/100M Base-TX Ethernet
IR Range Array Range of 30 Mtr., Smart IR
Operating Temperature -35°C ~ 60°C (-31°F ~ 140°F)
Humidity ≤95% RH (non-condensing)
Power Source 12 V DC±25%, PoE (IEEE802.3 af)
Power Consumption Max 6 W
Weatherproof Standard IP67
Dimension 157.3mm x 62.4mm x63mm (6.2” × 2.5” × 2.5”)
Weight 0.45 kg
