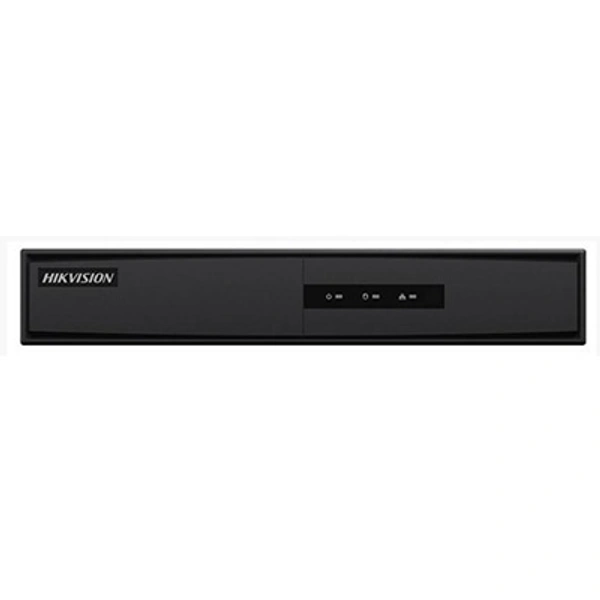

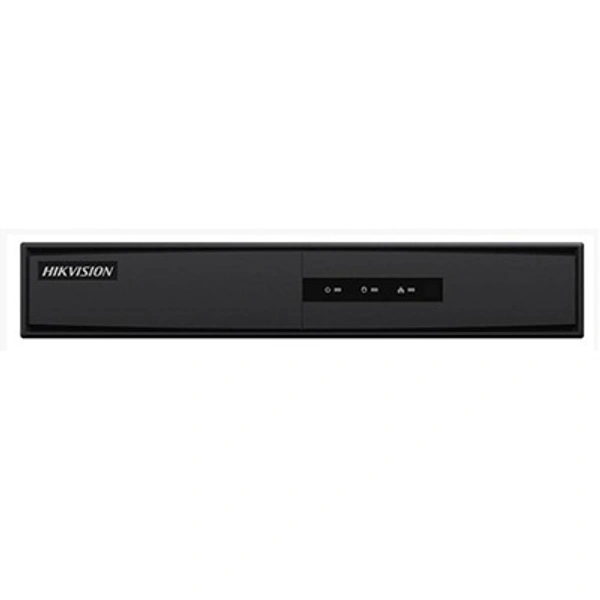

HIKVISION DS-7216HGHI-E1 HD-TVI DVR

DS-7216HGHI-E1

HD-TVI DVR

• Connectable to TVI and analog cameras
• Connectable to the Coaxitron camera with long transmission distance
• Connectable to network cameras
• Encoding at up to 720P resolution
• HDMI output and VGA output at up to 1920x 1080P resolution.
• New GUI and supports starting record with one key
• Instant playback for assigned camera during multi-channel live view mode
• Support up to 16-ch synchronous playback
• and reverse playback for multi-channel
• Smart playback to go through less effective information
• Manual video quality diagnostics
• Customi
• ation of tags, searching and playing back by tags
• Locking and unlocking record files
• Provide 1 SATA interface for HDD with up to 6TB capacity
• 1 self-adaptive 10M/100M network interface
• Support access by E
• VI
• Cloud P2P
• Support Hikvision DDNS (Dynamic Domain Name System)
• Network detection function.
• Connectable to the Coaxitron camera/dome with long transmission distance.
• Simultaneous HDMI and VGA outputs at up to 1920�1080P resolution.
• New GUI and support starting record with one key
• Instant playback for assigned camera during multi-channel live view mode
• 4/8/16-ch synchronous playback at 720P resolution
• and reverse playback for multi-camera
• Smart playback to go through less effective information
• Manual video quality diagnostics
• Customization of tags, searching and playing back by tags
• Locking and unlocking record files
• Support HDD quota management
• different capacity can be assigned to different cameras under quota mode
• Provide 1 SATA interface for HDD with up to 6TB capacity
• Up to 1 self-adaptive 10M/100M network interface.
• Support Hikvision DDNS (Dynamic Domain Name System)
• Network detection function

Video/Audio input

• Video compressionH.264
• Analog and HD-TVI video input16-ch
• Supported camera types720P/25, 720P/30, CVBS
• IP video input2-ch
• Audio compressionG.711u
• Audio input / Two-way audio in1-ch, RCA (2.0 Vp-p, 1 KΩ)

Video/Audio output

• HDMI / VGA output1920 x 1080 / 60 Hz,1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz, 1024 x 768 / 60 Hz
• Encoding resolutionSub-stream: 4CIF (non-real-time) / 2CIF (non-real-time) / CIF
• Frame rate1/16 fps ~ Real time frame rate
• Video bitrate32 Kbps ~ 4 Mbps
• Audio output1-ch, RCA (Linear, 1K Ω)
• Audio bitrate64 Kbps
• Dual-streamSupport
• Stream typeVideo, Video & Audio
• Synchronous playback16-ch
• Playback resolution720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF

Network management

• Remote connections128
• Network protocolsTCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS

Hard disk

• SATA1 SATA interface
• CapacityUp to 6 TB capacity for each disk

External interface

• Network interface1, 10M / 100M self-adaptive Ethernet interface
• USB port2 x USB2.0

General

• Power supply12V DC
• Consumption (without hard disks)≤ 20W
• Working temperature-10 ºC ~+55 ºC (14 ºF ~ 131 ºF)
• Working humidity10% ~ 90%
• Chassis1U chassis
• Dimensions (W x D x H)200 x 200 x 45mm (20.06 x 20.06 x 4.57 cm)
• Weight (without hard disks)200 x 200 x 45mm (20.06 x 20.06 x 4.57 cm)1.2 Kg (2.6 lb)
