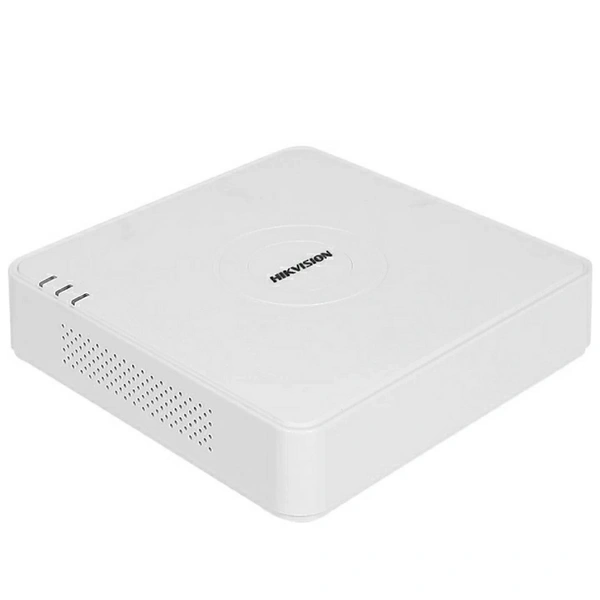

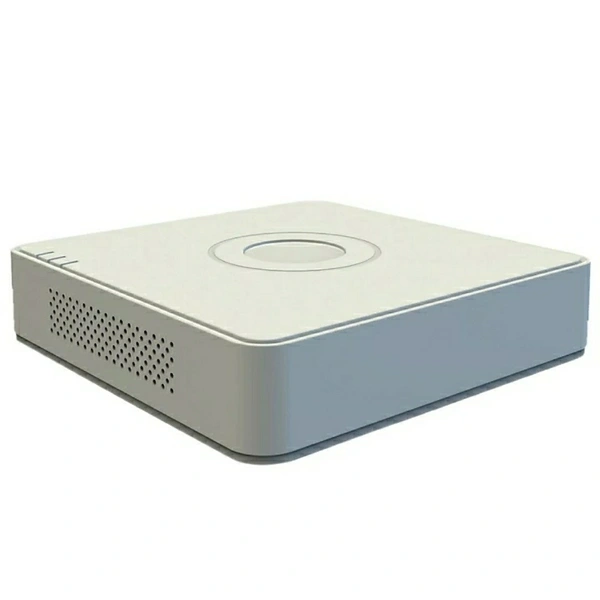

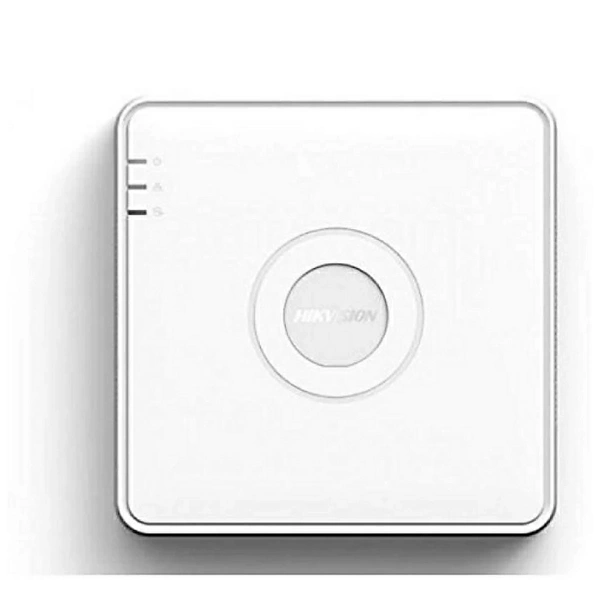

HIKVISION DS-7A16HGHI-F1 HD-TVI DVR 16CH

DS-7A16HGHI-F1

HD-TVI DVR

Video Input and Transmission

• Connectable to Turbo HD/HDCVI/AHD/CVBS signal input
• Long distance transmission over UTP and coaxial cable: max. 1200m for 720p Turbo HD signal

Compression and Recording

• One-key enable H.264+ compression to improve encoding efficiency by up to 50% and reduce data storage costs
• Supports 1080p lite of all channels and when enabled, the image effect is similar with 1080p

Video Output

• HDMI/VGA output at up to 1920 × 1080 resolution

• Storage and PlaybackOne SATA interface (up to 6 TB capacity per HDD);4/8/16-ch synchronous playback;Smart search for efficient playback
• Smart FunctionVQD (Video Quality Diagnostics);Unlock pattern for device login for the admin and clear-text password available;GUID file can be exported for password resetting and imported for finding the forgotten password;Supports PTZ control via Omnicast VMS of Genetec protocol
• Network & Ethernet AccessHik-Connect & DDNS (Dynamic Domain Name System) for easy network management; One RJ45 10M/100M Ethernet network interface; Output bandwidth limit configurable

Video/Audio input

• Video compressionH.264+/H.264
• Analog and HD-TVI video input16-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• Turbo HD input1080p25, 1080p30, 720p25, 720p30
• AHD input1080p25, 1080p30, 720p25, 720p30
• HDCVI input1080p25, 1080p30, 720p25, 720p30
• CVBS inputSupport
• IP video input2-ch(up to 18-ch)Up to 2MP resolution
• Audio compressionn G.711u
• Audio input/Twoway audio input1-ch ,RCA (2.0 Vp-p, 1 KΩ)

Video/Audio output

• HDMI/VGA output1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Encoding resolutionWhen 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIFWhen 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
• Frame rateMain stream:When 1080p Lite mode not enabled:For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)When 1080p Lite mode enabled:Frame rate 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)Sub-stream:2CIF@6fps;CIF/QVGA/QCIF@ 25fps(P)/30fps (N)Sub-stream:4CIF/2CIF@6fps;CIF/QVGA/QCIF@25fps (P)/30fps (N)
• Video bit rate32 Kbps to 4 Mbps
• Dual streamSupport
• Stream typeVideo, Video & Audio
• Synchronous playback16-ch

Network management

• Remote connections128
• Network protocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard disk

• SATA1 SATA interface
• CapacityUp to 6 TB capacity for each disk

External Interface

• Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
• USB interfaceRear panel: 2 × USB 2.0

General

• Power supply12 VDC
• Consumption (without HDD)≤ 20 W
• Working temperature-8 ºC ~+55 ºC (14 ºF ~ 131 ºF)
• Working humidity10% to 90%
• Dimensions200 × 200 × 45 mm (20.07 × 20.07 × 4.57 cm)
• Weight (without HDD)≤1.2 kg (2.6 lb)
