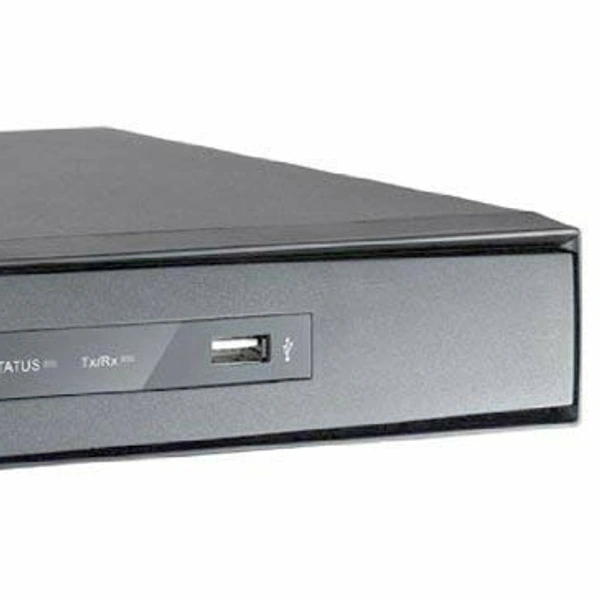

HIKVISION DS-7B08HUHI-K1 HD-TVI DVR 8CH VIDEO + 4 CH AUDIO

DS-7B08HUHI-K1

HD-TVI DVR + 4CH AUDIO

Video Input and Transmission

• Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
• Up to 2-ch 6 MP IP cameras input
• 5 MP/4 MP HDTVI video input and live view
• Defogging function enabled for the supported analog cameras
• Long distance transmission over UTP and coaxial cable: max. 800m for 1080p and 1200m for 720p HDTVI signal

Compression and Recording

• H.265+/H.265/H.264+/H.264 encoding for the main stream, and H.265/H.264 for the sub-stream of analog cameras
• Connectable to H.265+/H.265/H.264+/H.264 IP cameras
• H.265+ can be enabled to improve encoding efficiency and reduce data storage costs
• Full channel recording at up to 5 MP resolution

Video Output

• Simultaneous HDMI/VGA output
• HDMI output at up to 4K (3840 x 2160) resolution for DS-7B08HUHI-K1
• Separate CVBS output

Storage and Playback

• 1 SATA interface (up to 8 TB capacity per HDD)
• 4/8-ch synchronous playback
• Smart search for efficient playback
• Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

• Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
• Supports line crossing detection and intrusion detection of all channels, and 2-ch sudden scene change detection
• VCA information overlay in live view and smart playback
• VQD (Video Quality Diagnostics)
• Supports PTZ control via Omnicast VMS of Genetec protocol

Network & Ethernet Access

• Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
• 1 RJ45 10M/100M self-adaptive Ethernet interface for DS-7B04HUHI-K1, and 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface for DS-7B08HUHI-K1
• Output bandwidth limit configurable

Video/Audio input

• Video compressionH.265+/H.265/H.264+/H.264
• Analog and HD-TVI video input8-chBNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI input5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
• AHD input1080p25, 1080p30, 720p25, 720p30
• HDCVI input1080p25, 1080p30, 720p25, 720p30
• CVBS inputPAL/NTSC
• IP video input2-chUp to 6 MP resolutionSupports H.265+/H.265/H.264+/H.264 IP cameras
• Audio compressionG.711u
• Audio input4-ch, RCA (2.0 Vp-p, 1 KΩ)
